Connection terminal

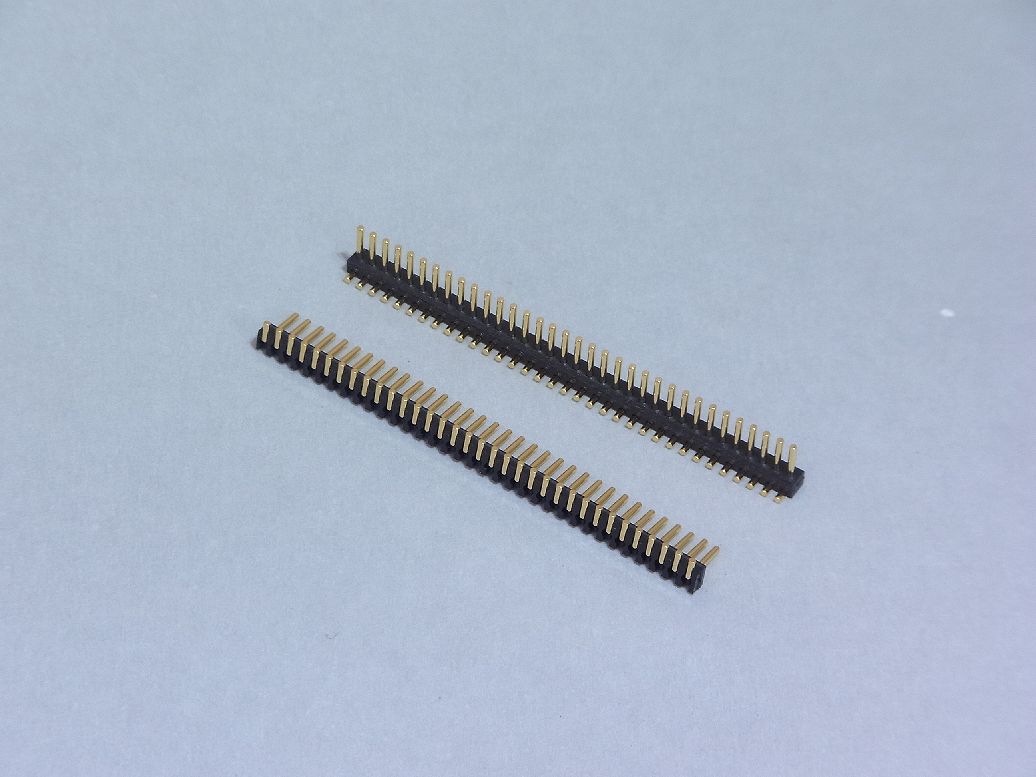

OQ series

Connection pin for surface mounting (Pitch: 1.27, 1.778, 2.54 mm)

PDF fileRoHS

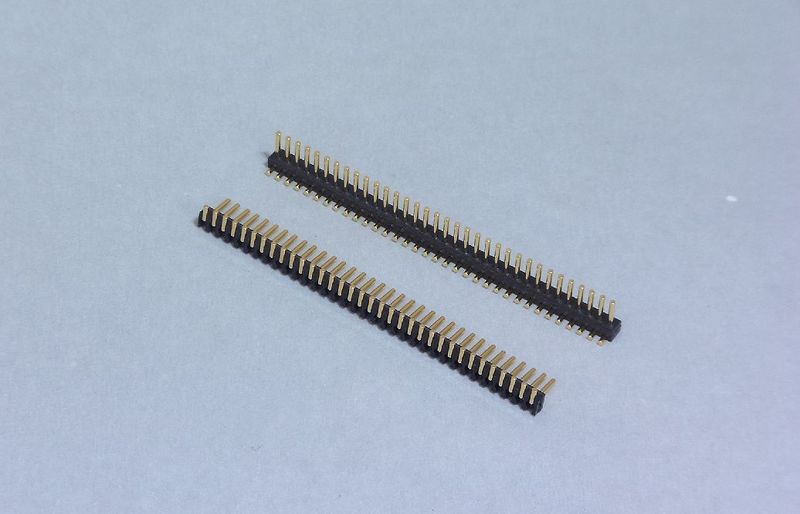

800x514 oq1
  • Pin pitch : 1.27mm(40pin connection)
  • 1.778mm(32pin connection)
  • 2.54mm(20pin connection).

For details, please refer to the PDF file.

Part Number MOQ
OQ-01-4.2 10
OQ-01-5 10
OQ-01-6.5 10
OQ-03-4.2 10
OQ-03-5 10
OQ-03-6.5 10
OQ-11-3.8 10
OQ-11-4.2 10
OQ-11-5 10
OQ-11-6.5 10
OQ-12-3.8 10
OQ-12-4.2 10
OQ-12-5 10
OQ-12-6.5 10
OQ-13-3.8 10
OQ-13-4.2 10
OQ-13-5 10
OQ-13-6.5 10
OQ-21-5 10
OQ-21-8 10
OQ-21-10 10
OQ-21-12 10
OQ-21-15 10
OQ-22-5 10
OQ-22-8 10
OQ-22-10 10
OQ-22-12 10
OQ-22-15 10
OQ-23-5 10
OQ-23-8 10
OQ-23-10 10
OQ-23-12 10
OQ-23-15 10
OQ-43-8 10
OQ-43-10 10
OQ-43-12 10
OQ-43-15 10
