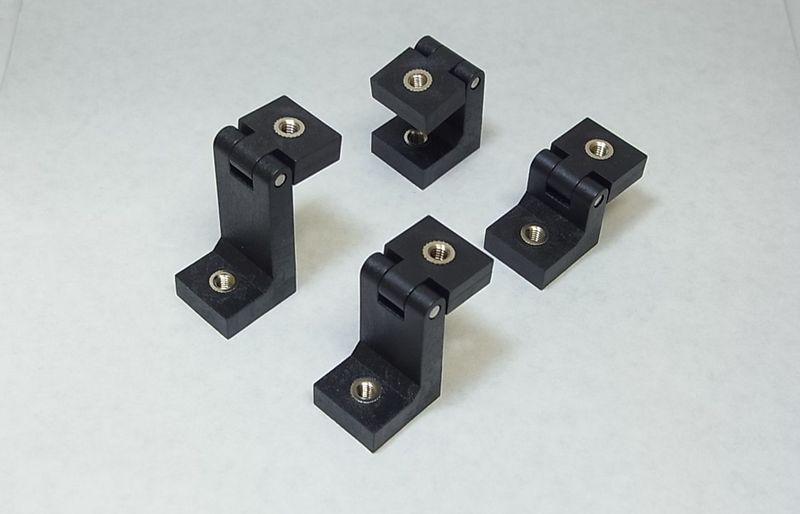

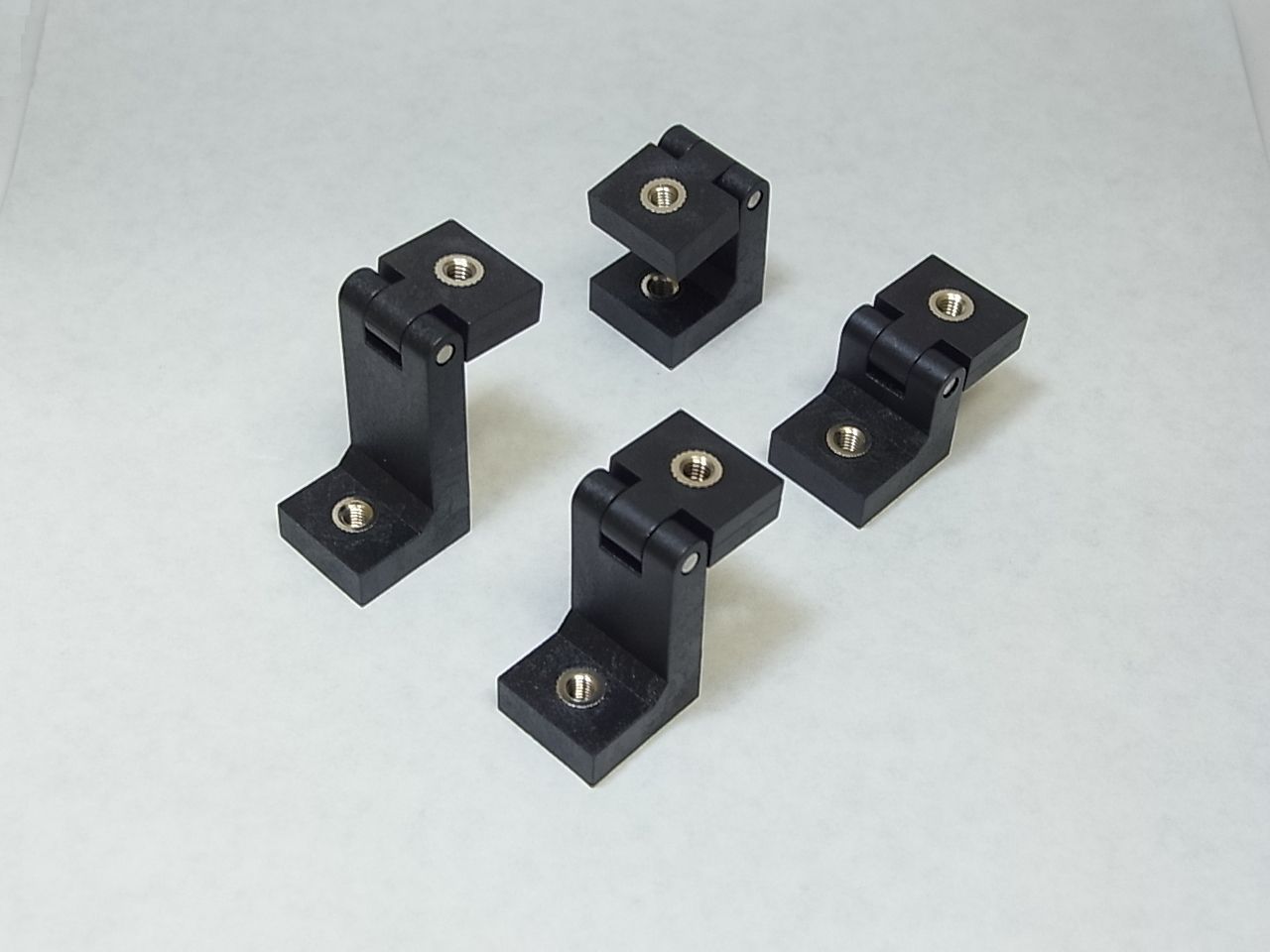

AXC series

Hinge for PC board

800x514 axc

  • Possible to fit 2PCB, and open-close.
  • Thread type(screw size : M3)
  • Non thread type(hole diameter : 3.2φ)

For details, please refer to the PDF file.

Part Numner MOQ
AXC-15-3.2-3.2 10
AXC-15-3.2-M3 10
AXC-15-M3-3.2 10
AXC-15-M3-M3 10

AXC-20-3.2-3.2 10
AXC-20-3.2-M3 10
AXC-20-M3-3.2 10
AXC-20-M3-M3 10

AXC-25-3.2-3.2 10
AXC-25-3.2-M3 10
AXC-25-M3-3.2 10
AXC-25-M3-M3 10

AXC-30-3.2-3.2 10
AXC-30-3.2-M3 10
AXC-30-M3-3.2 10
AXC-30-M3-M3 10
