Spacer (Resin type)For LED

3LZ series

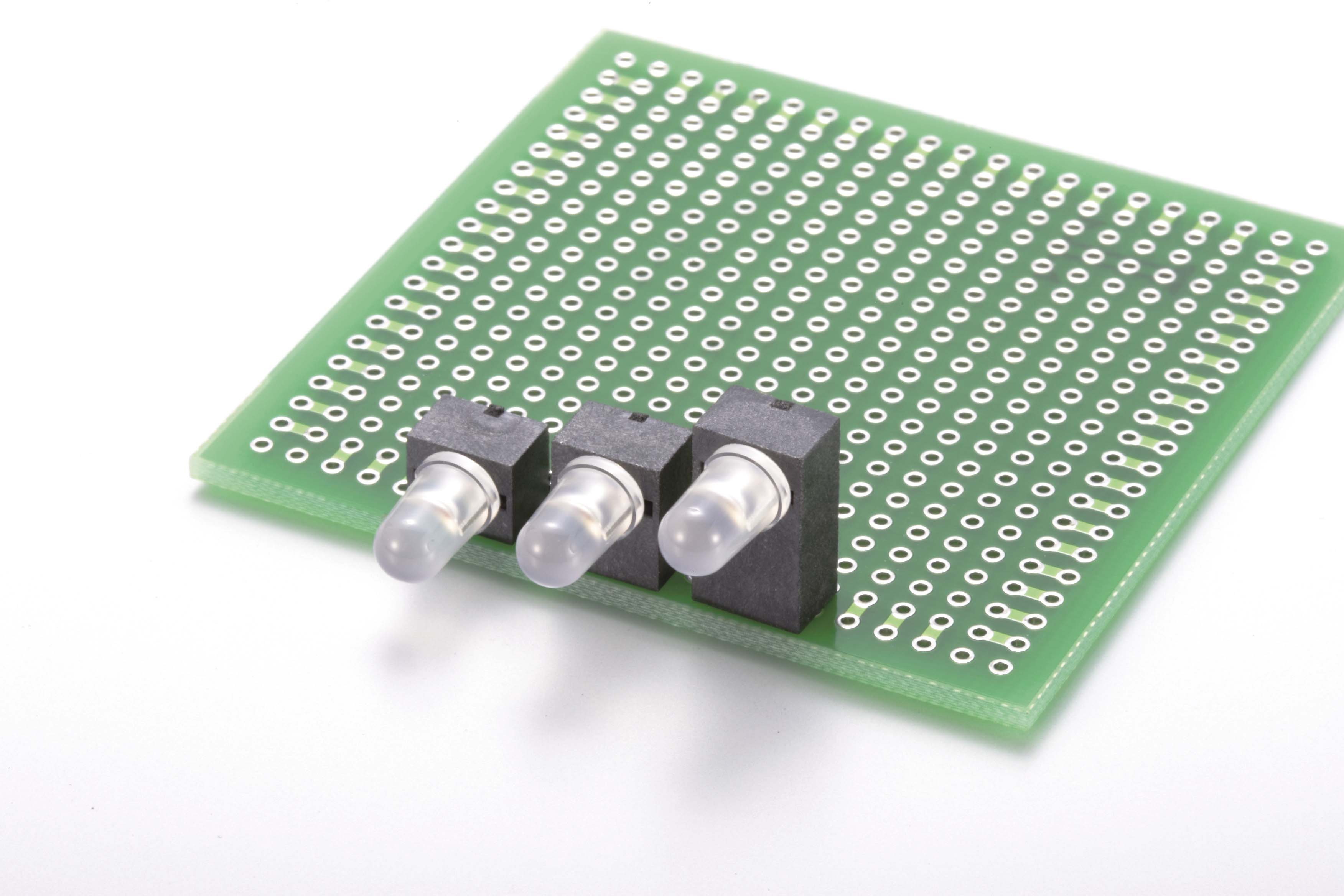

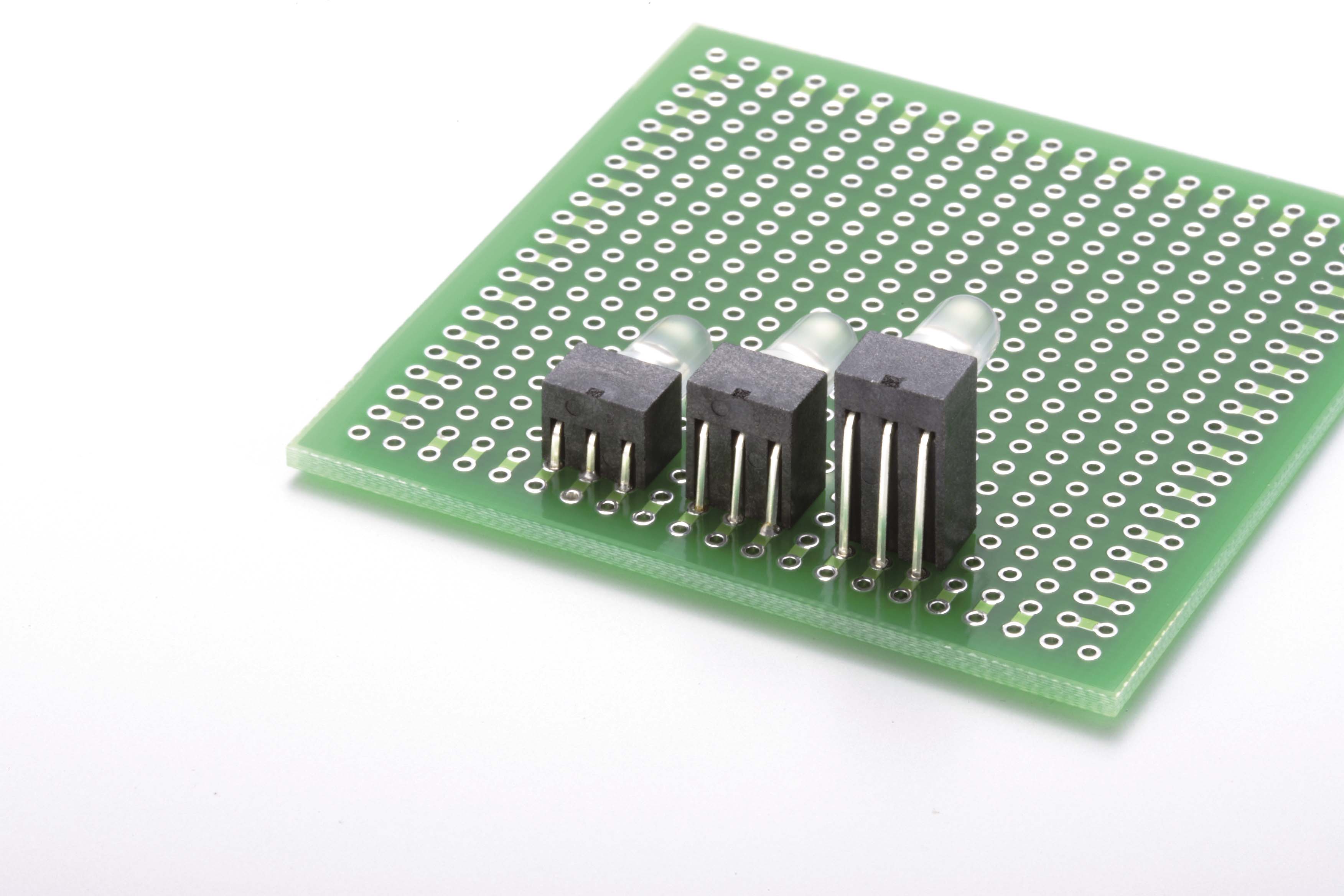

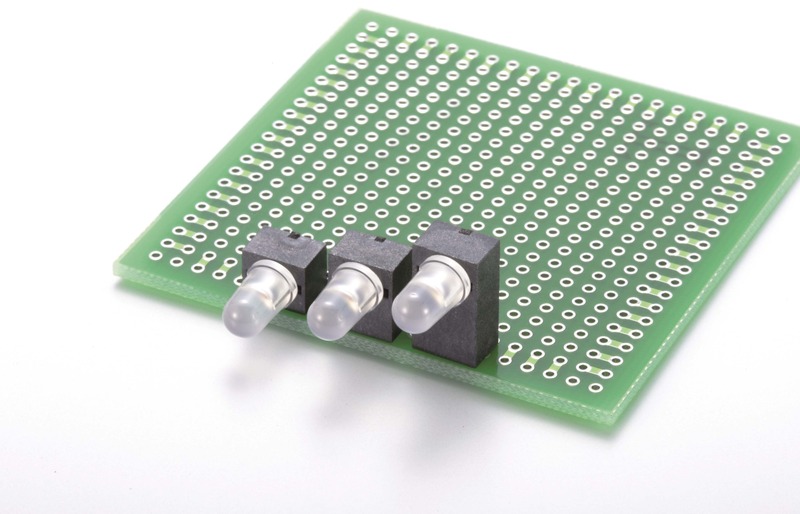

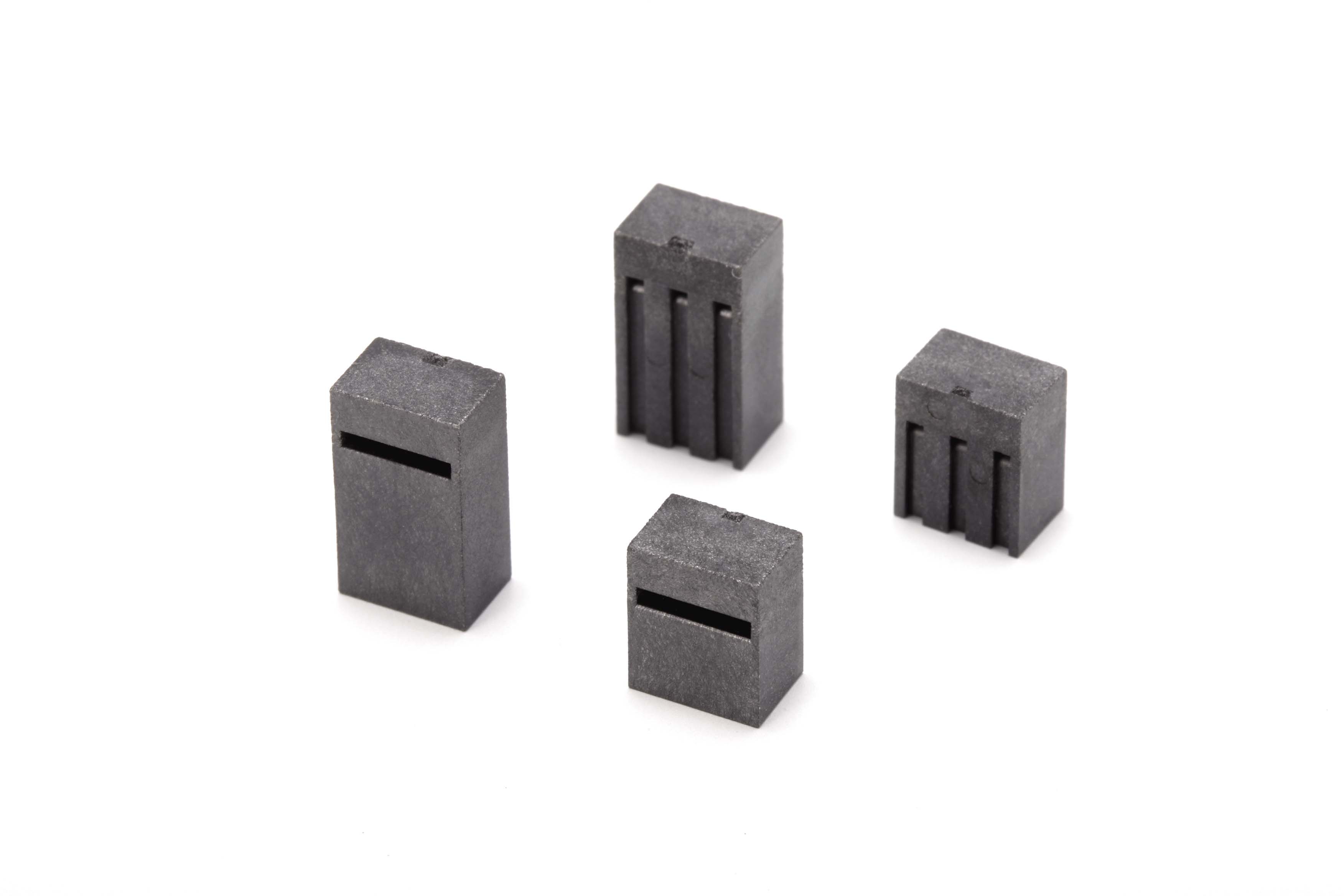

90-degree LED spacer (three-legged type)

PDF fileRoHS
800x514 3lz 2 800x514 3lz800x514 3lz 3
  • LED spacer(90 degree type)
  • Possible to insert 3-terminal LED
  • Possible to insert φ3, φ5 bullet-shape LED

For details, please refer to the PDF file.

Part Number MOQ
3LZ-2 100
3LZ-2.5 100
3LZ-3 100
3LZ-3.5 100
3LZ-4 100
3LZ-4.5 100
3LZ-5 100
3LZ-5.5 100
3LZ-6 100
3LZ-6.5 100
3LZ-7 100
3LZ-7.5 100
3LZ-8 100
3LZ-8.5 100
3LZ-9 100
3LZ-9.5 100
3LZ-10 100
