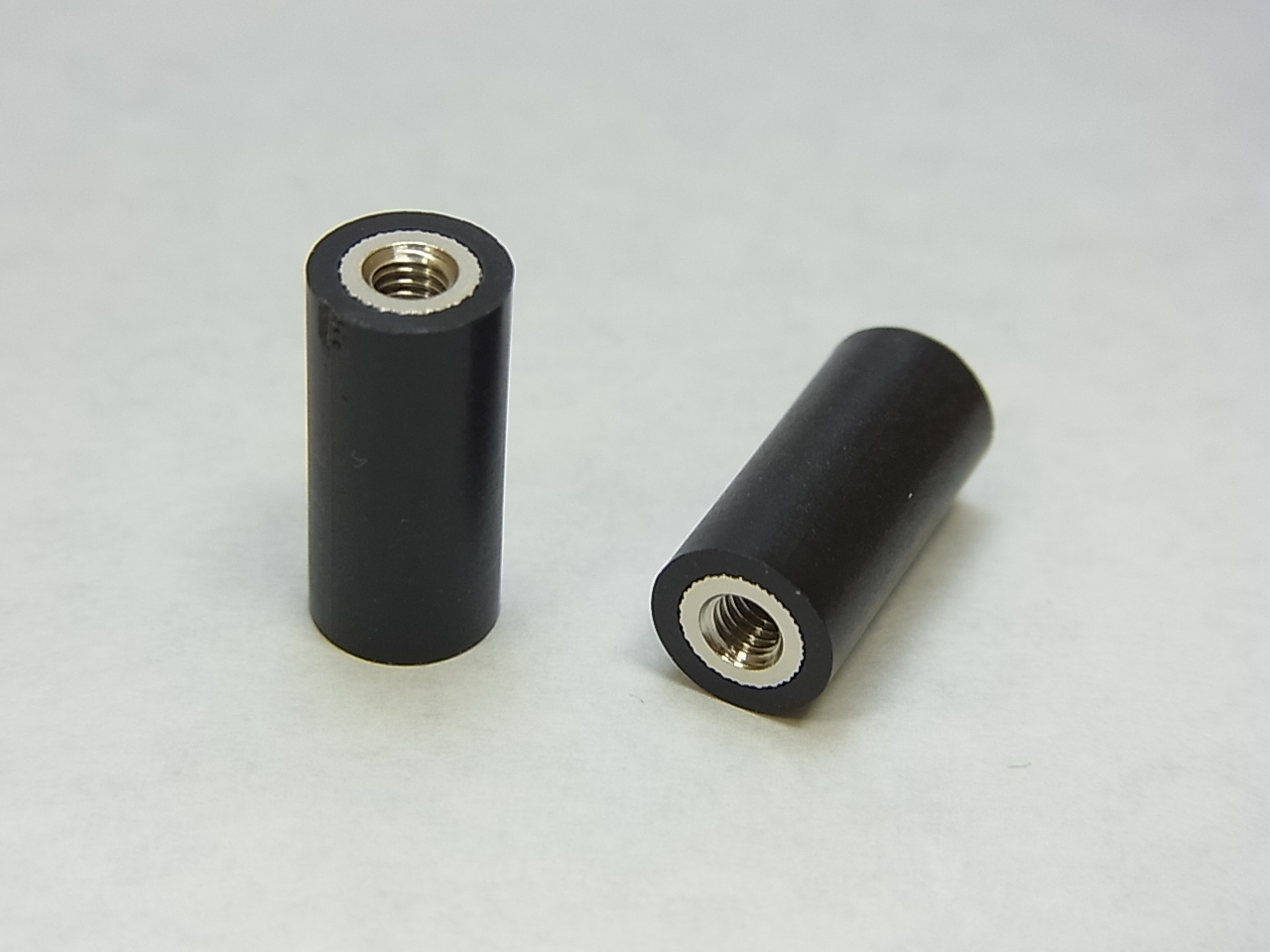

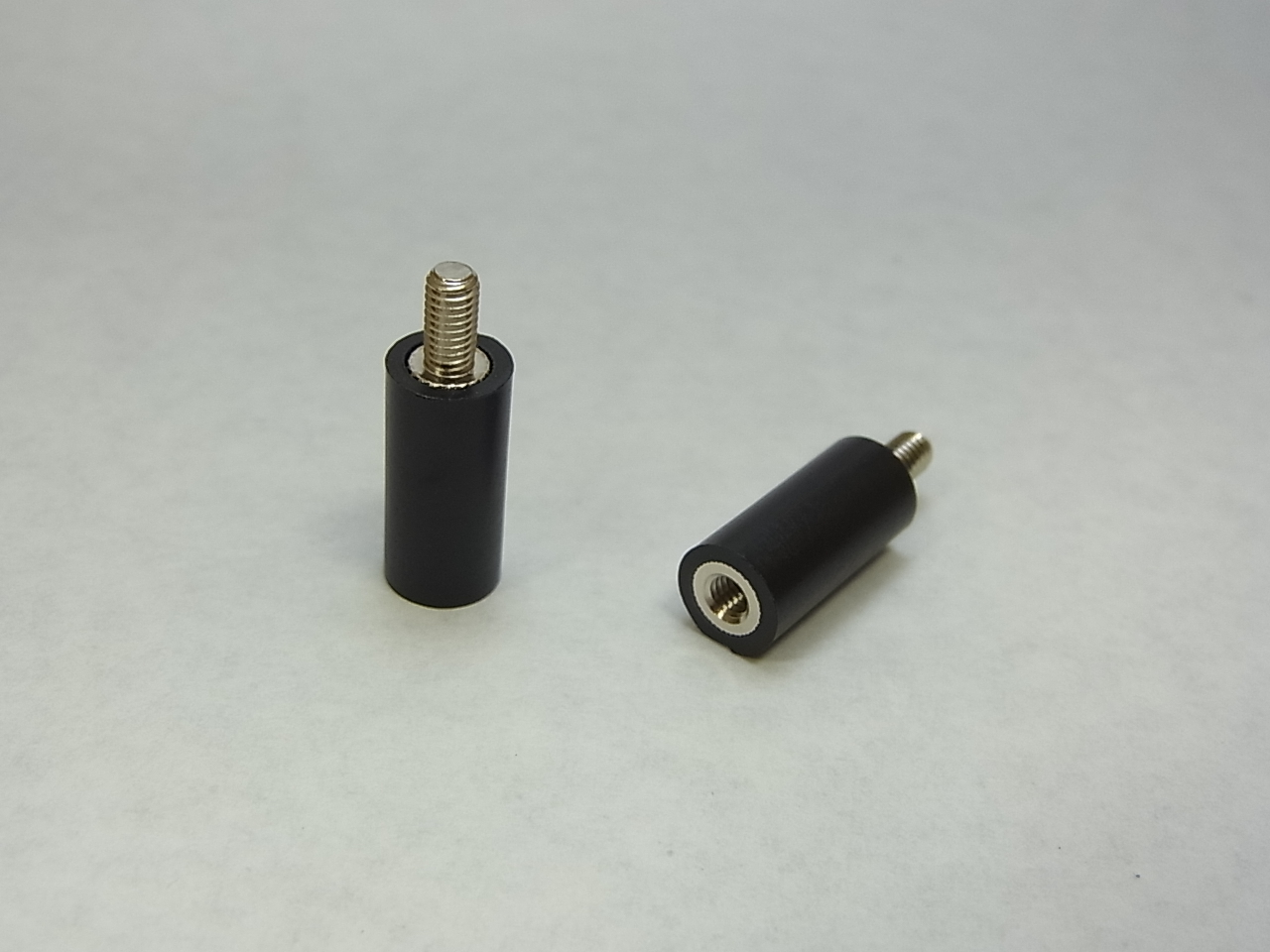

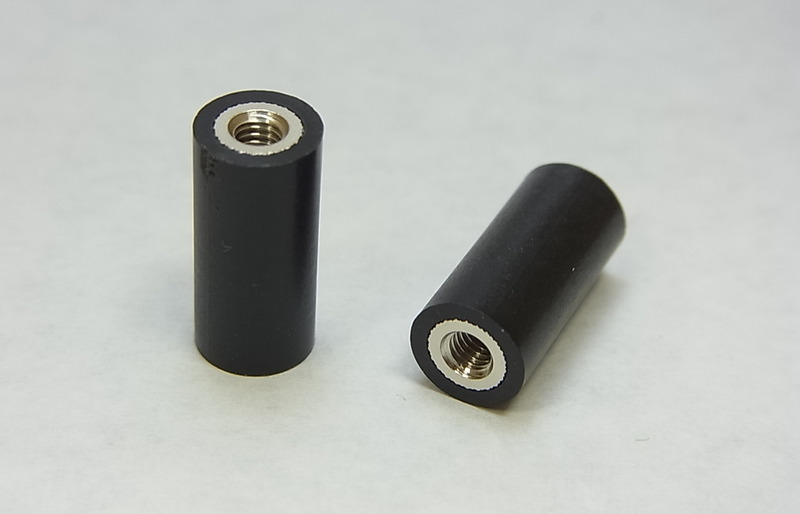

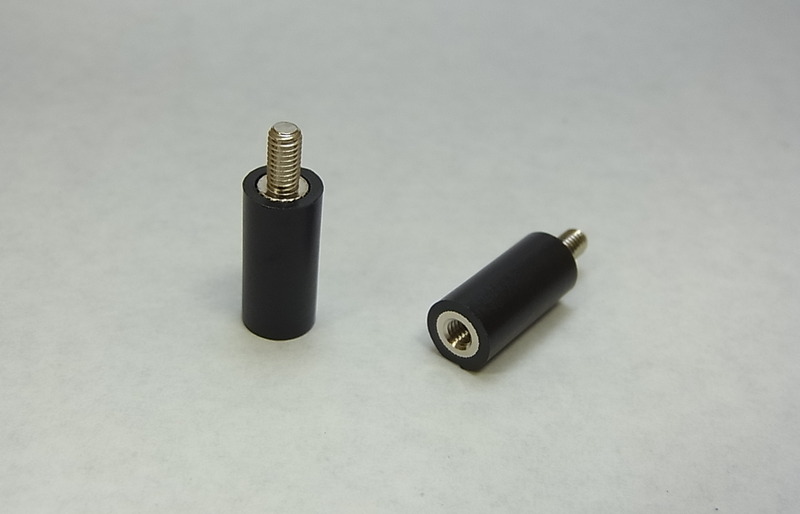

2.6AP, 2.6AQ series

Spacer of metal resin type (M2.6 type)

800x514 ap800x514 aq

  • Spacer(strong type)
  • Metal material into the resin
  • Screw size : M2.6

The strength of this spacer is increased by filling metal in the resin.

● For the type of 10 mm or over, the upper part and the lower part are electrically insulated.
● For the type of 9 mm or less, the upper part and the lower part are electrically connected.
● Material: Resin part: PBT black(UL94V-0)
Metal part: Brass
● Finish: Nickel plating
● Operating temperature range: −40 to +125℃

For details, please refer to the  file.

Part Number MOQ
2.6AP-3 100
2.6AP-4 100
2.6AP-5 100
2.6AP-6 100
2.6AP-7 100
2.6AP-8 100
2.6AP-9 100
2.6AP-10 100
2.6AP-11 100
2.6AP-12 100
2.6AP-13 100
2.6AP-14 100
2.6AP-15 100
2.6AP-16 100
2.6AP-17 100
2.6AP-18 100
2.6AP-19 100
2.6AP-20 100
2.6AP-25 100
2.6AP-30 100
2.6AP-35 100
2.6AP-40 100
2.6AP-45 100
2.6AP-50 100



Part Number MOQ
2.6AQ-4 100
2.6AQ-5 100
2.6AQ-6 100
2.6AQ-7 100
2.6AQ-8 100
2.6AQ-9 100
2.6AQ-10 100
2.6AQ-11 100
2.6AQ-12 100
2.6AQ-13 100
2.6AQ-14 100
2.6AQ-15 100
2.6AQ-16 100
2.6AQ-17 100
2.6AQ-18 100
2.6AQ-19 100
2.6AQ-20 100
2.6AQ-25 100
2.6AQ-30 100
2.6AQ-35 100
2.6AQ-40 100
2.6AQ-45 100
2.6AQ-50 100
