Connection terminal

OQS series

Connection pin for surface mounting (with positioning pin)

PDF fileRoHS

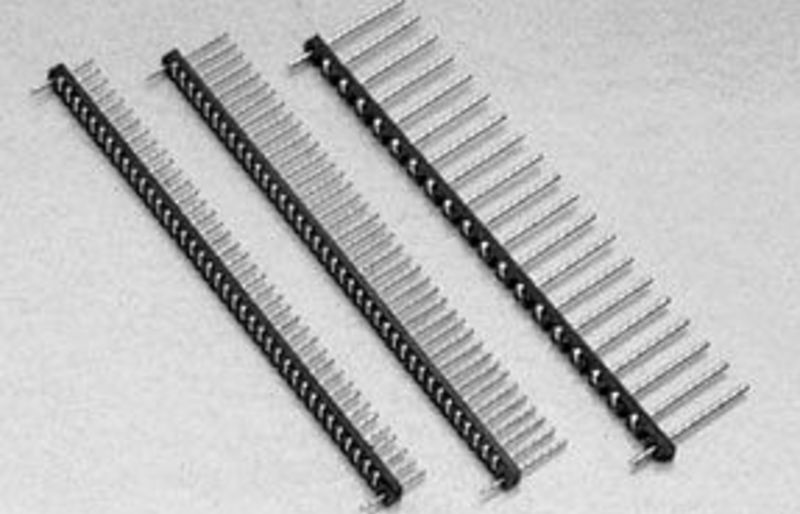

800x514 oqs
  • Pin pitch : 1.27mm(40pin connection)
  • 1.778mm(32pin connection)
  • 2.54mm(20pin connection).

For details, please refer to the PDF file.

Part Number MOQ
OQS-01-4.2 10
OQS-01-5 10
OQS-01-6.5 10
OQS-03-4.2 10
OQS-03-5 10
OQS-03-6.5 10
OQS-11-4.2 10
OQS-11-5 10
OQS-11-6.5 10
OQS-12-4.2 10
OQS-12-5 10
OQS-12-6.5 10
OQS-13-4.2 10
OQS-13-5 10
OQS-13-6.5 10
OQS-21-5 10
OQS-21-8 10
OQS-21-10 10
OQS-21-12 10
OQS-21-15 10
OQS-22-5 10
OQS-22-8 10
OQS-22-10 10
OQS-22-12 10
OQS-22-15 10
OQS-23-5 10
OQS-23-8 10
OQS-23-10 10
OQS-23-12 10
OQS-23-15 10
OQS-43-8 10
OQS-43-10 10
OQS-43-12 10
OQS-43-15 10
