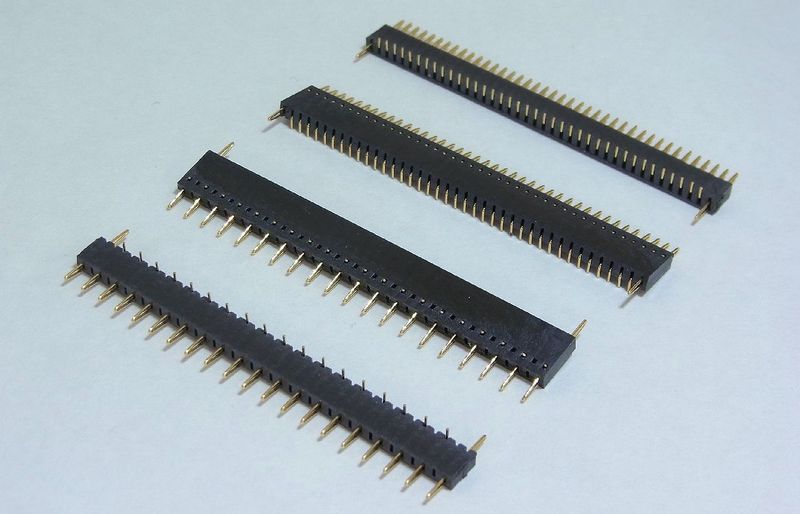

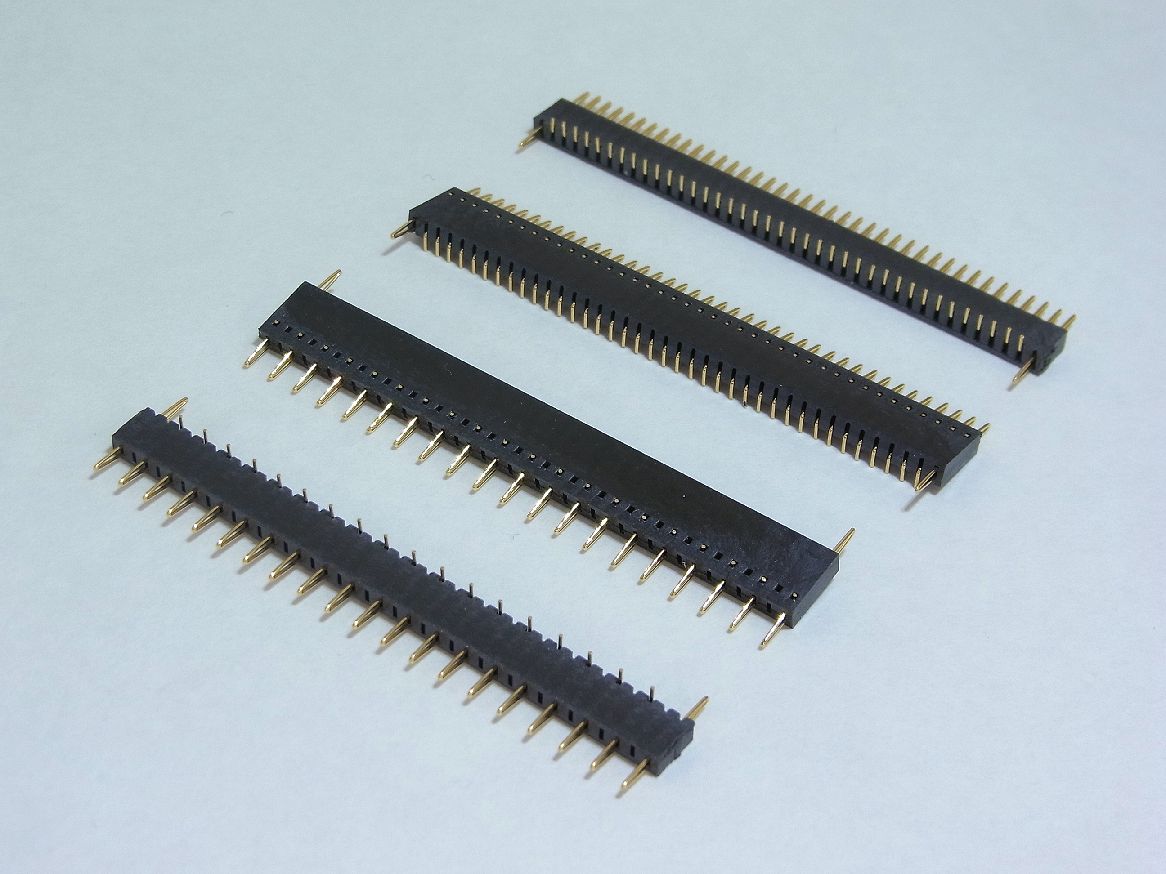

XH series

Conthrough series for two-tiered installation of printed boards (For SMT)

800x514 xh 1

  • Possible to connect SMD PCB and
  • through-hole PCB in parallel.
  • Pin pitch : 1.27mm, 2.54mm

For details, please refer to the PDF file.

Part Number MOQ
XH-1-2 10
XH-1-2.5 10
XH-1-3 10
XH-1-3.5 10
XH-1-4 10
XH-1-4.5 10
XH-1-5 10
XH-1-5.5 10
XH-1-6 10

XH-3-2 10
XH-3-2.5 10
XH-3-3 10
XH-3-3.5 10
XH-3-4 10
XH-3-4.5 10
XH-3-5 10
XH-3-5.5 10
XH-3-6 10
