Connection terminal

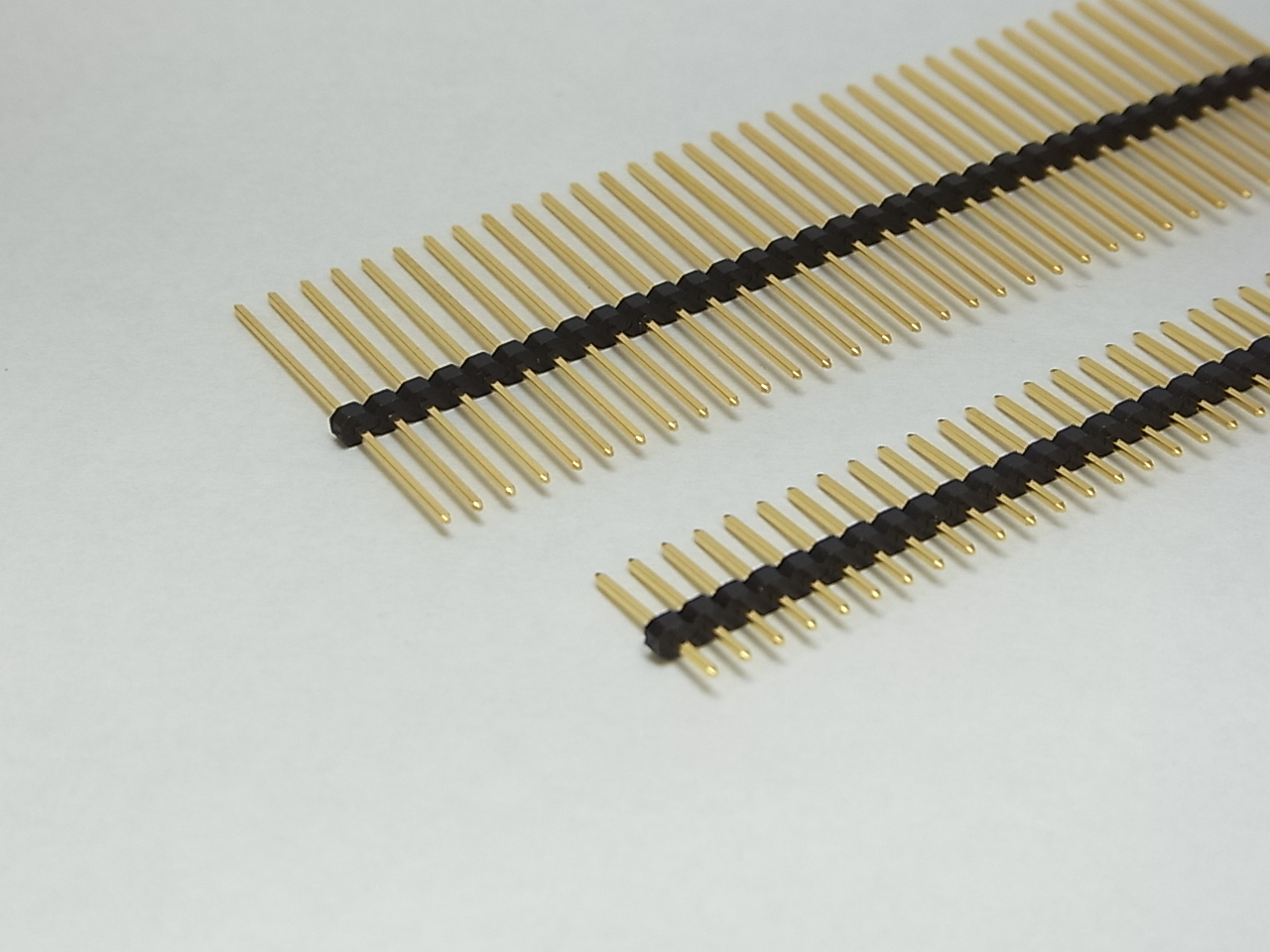

WL-□-□ series

Wrapping terminal of connected type

PDF fileRoHS

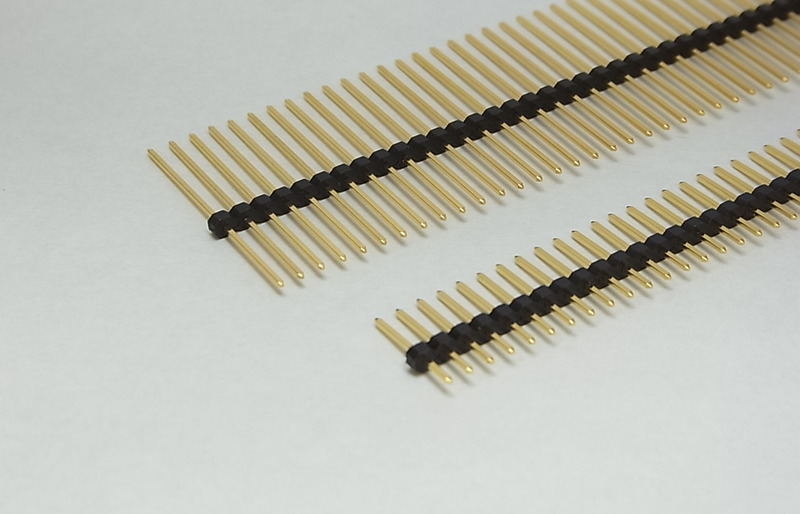

800x514 wl %e2%96%a1 %e2%96%a1
  • Pin pitch : 2.54mm.
  • Length of upper and lower from the resin
  • are different.

For details, please refer to the PDF file.

Part Number MOQ
WL-4-7 10
WL-6-6 10
WL-8-11 10
WL-12-16 10
