Connection terminalConthrough Ⓡ

XB series

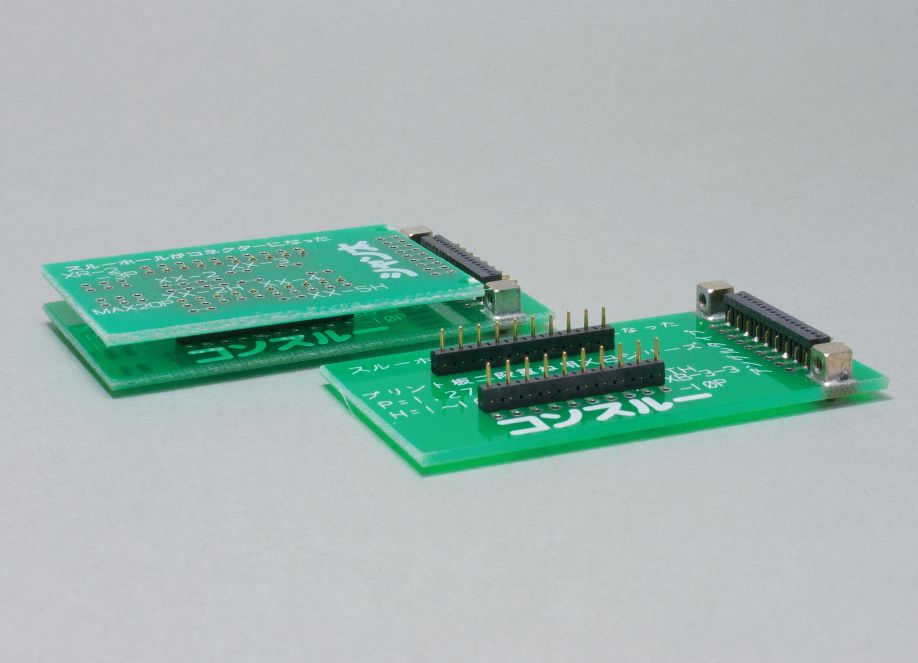

Conthrough series for two-tiered installation of printed boards

PDF fileRoHS

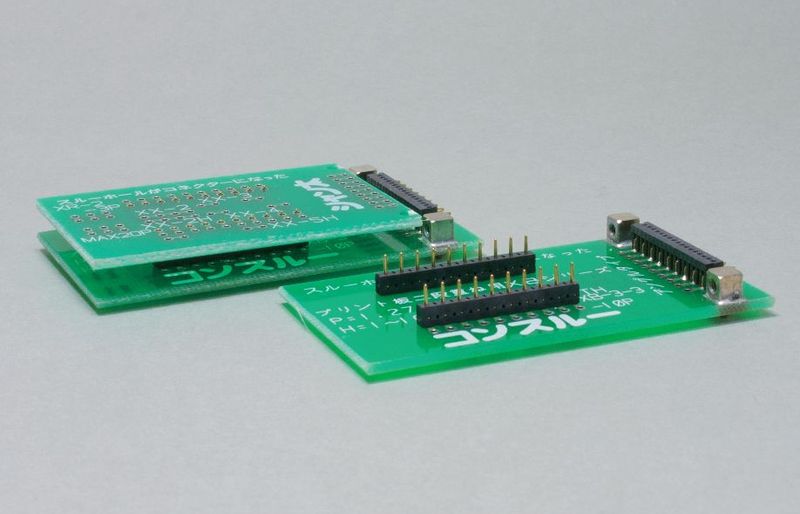

800x514 xb 2
  • Possible to connect 2PCB with 2-tiered.
  • Pin pitch : 1.27mm(40pin connection max)
  • 2.54mm(20pin connection).

For details, please refer to the PDF file.

Part Number MOQ
XB-1-1 10
XB-1-1.5 10
XB-1-7 10
XB-1-8 10
XB-1-9 10
XB-1-10 10
XB-1-2 10
XB-1-2.5 10
XB-1-3 10
XB-1-3.5 10
XB-1-4 10
XB-1-4.5 10
XB-1-5 10
XB-1-5.5 10
XB-1-6 10

XB-3-1 10
XB-3-1.5 10
XB-3-7 10
XB-3-8 10
XB-3-9 10
XB-3-10 10
XB-3-2 10
XB-3-2.5 10
XB-3-3 10
XB-3-3.5 10
XB-3-4 10
XB-3-4.5 10
XB-3-5 10
XB-3-5.5 10
XB-3-6 10
